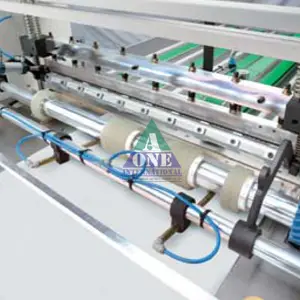

Automatic Woven Bag Cutting Machine
Precision Alignment for Maximum Efficiency
Streamline your bag production with our Automatic Bag Heat Cutting Machine. Designed for stable performance and ease of use, it precisely cuts PP woven bags. Various models accommodate different cutting lengths. We also offer integrated cutting and sewing, or cutting, sewing, and printing solutions for complete automation.
| Technical Details | Specification |
|---|---|
DIAMETER OF UNWINDING CLOTH |
1200 mm Maximum |
WIDTH OF UNWINDING CLOTH |
800 – 1600 mm Applicable |
CUTTING LENGTH |
800 – 6000 mm Adjustable |
PRODUCTION OUTPUT |
20 – 30 pcs/Min |
FABRIC ROLL LIFTING |
Pneumatic Type |
FEED-IN FEEDING ROLLER MOTOR |
2 HP AC Motor |
TENSION CONTROL |
Dancing Roller Type |
CUTTING LENGTH FEEDING ROLLER MOTOR |
3 HP AC Motor |
LENGTH COUNTING |
0 ~ 5000 mm Applicable |
CUTTING LENGTH ACCURACY |
± 1 % |
CUTTING KNIFE |
Heat Blade |
ELECTRICITY HEAT |
3.5KVA |
BAG MOUTH AUTOMATIC OPEN DEVICE |
1 set |
POWER CONSUMPTION |
7 KW |
DIMENSION (L X W X H) |
6,200 x 2,500 x 1,450 mm |
WEIGHT |
3,800 kg |
MANPOWER REQUIRED |
1 Person |
