Bag Conversion Line

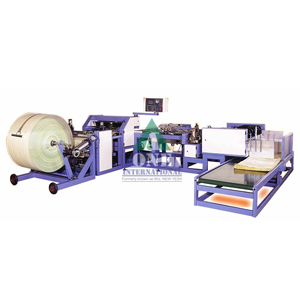

ABCS.850: Revolutionizing Bag Conversion
The ABCS.850 series represents the next evolution in fully automatic bag conversion lines, engineered to handle coated or uncoated standard fabrics, leno fabrics, and BOPP laminated materials with exceptional efficiency and adaptability. This cutting-edge machine combines high output with versatility, producing 40 to 50 bags per minute while optimizing material usage for maximum cost-effectiveness and profitability.
Key Features
- Pneumatic system for effortless fabric loading and unloading
- Servo-driven technology ensuring precise control

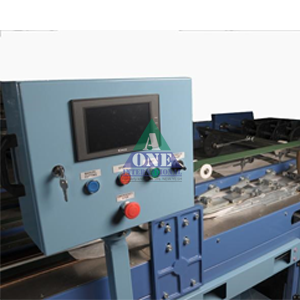

- Intuitive programmable logic control (PLC) interface for ease of use
- Durable, high-quality carbon alloy steel blades
- Integrated counting, stacking, and conveying functionality
Performance Specifications
- Output: 40 to 50 bags per minute
- Bag width range: 300 mm to 800 mm
- Bag length range: 300 mm to 1250 mm
- Length accuracy: ±1 mm
Optional Features
| Technical Data | Specifications |
|---|---|
WIDTH OF UNWINDING FABRIC ROLL |
300 TO 850 mm |
DIAMETER OF FABRIC ROLL |
1250 mm |
INTERNAL DIAMETER OF FABRIC ROLL CORE |
70 TO 115 mm |
REPLACEMENT OF FABRIC ROLL |
Pneumatic System |
Cutting Length |
600 to 1350 mm |
Bottom Folding Width |
16 to 30 mm (Adjustable(For Single Fold) |

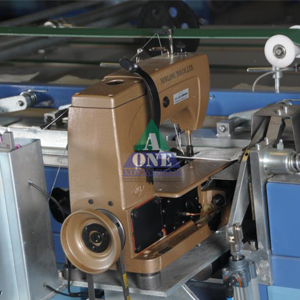

Stitching Type |
Single Stitch/Double Stitch |
Stitching Range |
5 to 10 mm |
Production Speed |
25 to 40 bags / Min* |
Dimensions (L X B X H) |
17 X 17 X 6 feet |
*Depends on material used, width of fabric, no. of folds and stitches, etc.
