Bobbin Winder
Precision Winding for the Rope Industry

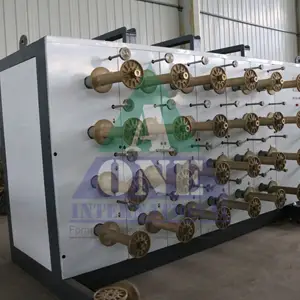

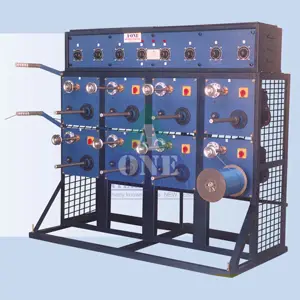

The A ONE Bobbin Winder is specifically designed for the rope industry, ensuring seamless synchronization with monofilament and tape line extruders.
Engineered for high efficiency and durability, it features an individual on/off switch, dimmer stat, independent traverse system, and a heavy-duty 3-phase torque motor. The robust timing belt, pulley, and gear drive system guarantees smooth and reliable operation.
Specifications
Bobbin Size: 250 mm flange diameter × 300 mm length × 75 mm core diameter (customizable)
Capacity: 6 to 7 kg of yarn
Denier Range: 6000 to 12000
Torque Motor Capacity: 10 kg
Line Speed: 70 to 120 meters per minute
Traverse Length: 12 inches
Independent Torque Motor & Dimmer Control for Each Station
Adjustable Traverse Speed for monofilament yarn, PP tape twine, and fibrillated yarn
Applications
The A ONE Bobbin Winder is suitable for a wide range of materials, including:
- Rope Yarn
- Fishnet Twines
- Baler / Binder Twines
- Box Strapping
- Monofilament Yarns
- Danline
Bobbin size and traverse specifications can be customized to meet specific application requirements. Designed for efficiency, precision, and durability, this winder is an ideal choice for industries demanding high-performance winding solutions.
