Sutli Plant
Advanced Synthetic String Plant for High-Quality Production
Engineered for excellence, our synthetic string plant ensures unmatched shock absorption, bulkiness, uniformity, and tensile strength. Designed to produce lightweight, flexible, and fluff-free strings, this high-performance system guarantees superior binding ability and long-lasting durability—perfect for industries demanding precision and efficiency.
Key Features
Built to Last: Nitride screw and barrel crafted from special nitro-alloy steel for maximum durability and trouble-free operation.
Precision Flow Control: Hard chrome-plated ‘T’ die ensures uniform flow distribution for consistent quality.
Powerful & Reliable: Helical gearbox with inbuilt heavy thrust bearing for smooth, efficient performance.
Customizable to Your Needs: Choose from screw diameters ranging from 40mm to 90mm to match your exact production requirements.
Industry-Leading Output: Delivers unmatched production capacity of 55 kg/hr to 100 kg/hr—the highest in its class.
Effortless Handling: Pneumatic-controlled NIP rolls for smooth and precise processing.
Seamless Operation: Full synchronization of all AC motors for optimized performance.

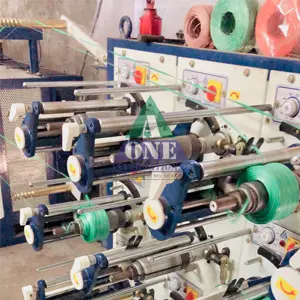

Versatile Winding Options: Cheese winders available in multiple sizes—2.5″, 4″, 5″, 6″, and 8″—customizable to client specifications.
Smart Temperature Control: Microprocessor-based PID temperature controller for precise and efficient thermal management.
| Plant Model | ASP50 | ASP65 | ASP75 | ASP90 |
|---|---|---|---|---|
Applicable Material |
Virgin & Recycled PP / HDPE |
Virgin & Recycled PP / HDPE |
Virgin & Recycled PP / HDPE |
Virgin & Recycled PP / HDPE |
Screw typical Length |
28 : 1 L/D |
28 : 1 L/D |
28 : 1 L/D |
28 : 1 L/D |
Screw Barrel Material |
High Tenacity Nitride Steel |
High Tenacity Nitride Steel |
High Tenacity Nitride Steel |
High Tenacity Nitride Steel |
Extruder Output |
40 – 55 |
60 – 75 |
70 – 100 |
90 – 125 |
Screen Changer |
Manual Screen Changer or Hydraulic Screen Changer |
Manual Screen Changer or Hydraulic Screen Changer |
Manual Screen Changer or Hydraulic Screen Changer |
Manual Screen Changer or Hydraulic Screen Changer |
T-Die Width (mm) |
350 |
500 |
700 |
1000 |
Line Speed |
160.00 Max. Meter/Minute |
160.00 Max. Meter/Minute |
160.00 Max. Meter/Minute |
160.00 Max. Meter/Minute |
Main Control Panel |
Standard Control Panel |
Standard Control Panel |
Standard Control Panel |
Standard Control Panel |
Winder Type: Cheese Winders |
( Spool size 2¼ “ / 4” / 5” / 6” / 8”) |
( Spool size 2¼ “ / 4” / 5” / 6” / 8”) |
( Spool size 2¼ “ / 4” / 5” / 6” / 8”) |
( Spool size 2¼ “ / 4” / 5” / 6” / 8”) |
No. Of Winder Station |
12 |
18 |
24 |
36 |
Optional Unit ** |
Fibrillating Unit |
Fibrillating Unit |
Fibrillating Unit |
Fibrillating Unit |
Total Load Connection (KW)** |
32 |
45 |
65 |
90 |
Running Plant Load (KW)** |
21 |
29 |
42 |
59 |
